Open Type Paddle Mixer Machine For Whey Protein Powder One Year Warranty

Name: Open Type Paddle Mixer Machine For Whey Protein Powder One Year Warranty
Brand: TOPSPACK
Price: 1 USD

Brand Name : TOPSPACK

Model Number : TP-SP100L 200L 300L 500L 1000L 1500L 2000L 3000L

Certification : CE SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10sets/month

Delivery Time : 15~25 working days

Packaging Details : seaworthy plywood package

product name : open type double shaft paddle mixer

power : 3P220V~415V ,50/60HZ

mixer type : paddle

Warranty : 12 months

max loading rate : 60%~70%

conditon : new

Certifications : CE SGS

Contact Now

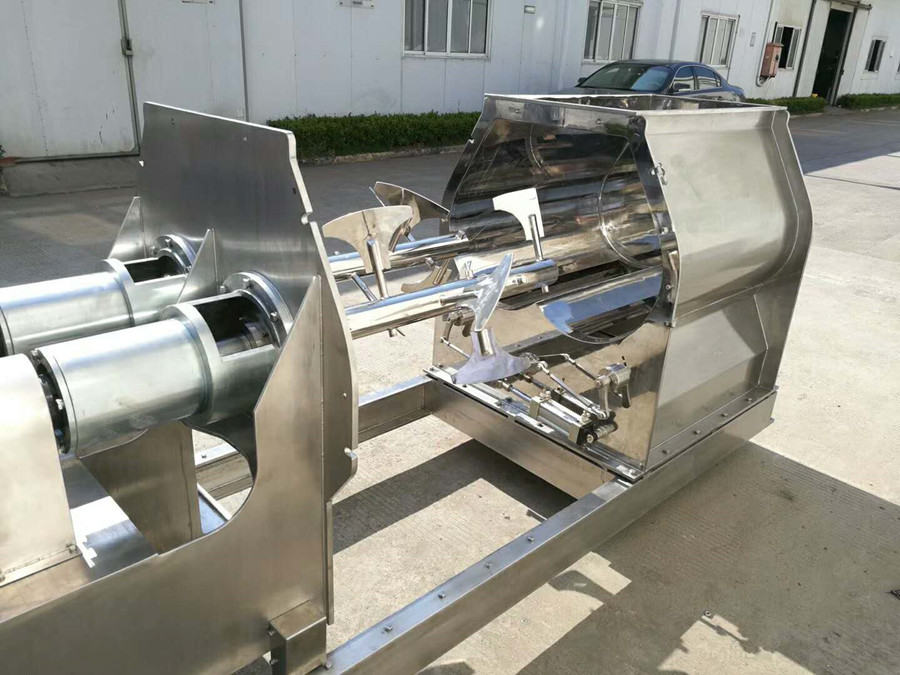

SUS304 whey protein powder open type double shaft paddle mixer

Descriptive abstract

Double shaft paddle mixer is called no gravity mixer, too; it is widely applied in mixing powder and powder, granular and granular, granular and powder, and few liquid; it is used for food, chemical, pesticide, feeding stuff, and battery ect.

Main Features

1. High active :Rotate reversely and throw materials to different angles,mixing time 1-3min.

2. High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%.

3. Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole.

4. Zero leakage: Patent design and ensure the rotating axle & discharging hole w/o leakage.

5. Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.

6. Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.

Main Technical Data

Model	TPW-300	TPW-500	TPW-1000	TPW-1500	TPW-2000	TPW-3000
Effective volume(L)	300	500	1000	1500	2000	3000
Full volume(L)	420	650	1350	2000	2600	3800
Loading Ratio	0.6-0.8
Turning speed(rpm)	53	53	45	45	39	39
power	5.5	7.5	11	15	18.5	22
Total weight(kg)	660	900	1380	1850	2350	2900
Total size	133011301030	148013501220	173015901380	203017401480	212020001630	242023001780
R(mm)	277	307	377	450	485	534
Power supply	3P AC208-415V 50/60Hz
