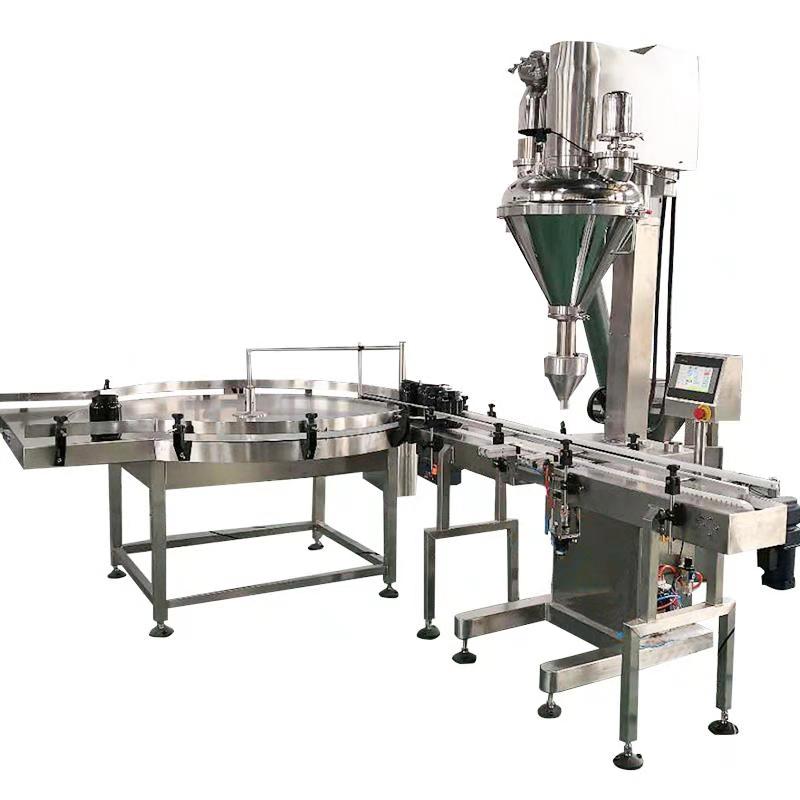

Food Industry Milk Dry Powder Filling Machine Stainless Steel Material

Name: Food Industry Milk Dry Powder Filling Machine Stainless Steel Material
Brand: TOPSPACK
Price: 1 USD

Food Industry Milk Dry Powder Filling Machine Stainless Steel Material Manufactures

Brand Name : TOPSPACK

Model Number : TP-PF-A14

Certification : CE SGS

Place of Origin : Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 15 sets per month

Delivery Time : 20 work days

Packaging Details : seaworthy plywood case

Name : Food Industry New Design Dry Powder Filling Machine 1-5000g

Filling range : 1-5000g

Hopper volume : 50L

Weight dosing : By Auger Screw Volumetric

Power supply : 3P AC208-415V 50/60Hz

Material : Stainless steel 304

Overseas service : Available

Contact Now

Food Industry Milk Powder Filling Machine Stainless Steel 1-5000g

General Introduction:

The auger screw filling machine is applied in many kinds of industries ,such as food ,chemical, pharmaceutical, cosmetic, and industrial ,etc. It has accurate filling on powder filling , as well as small particles filling.

Features :

1. Stainless steel structure;split hopper could be washed easily without tools.
2. Servo motor drive screw.
3. Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
4. PLC control, touch screen display, easy to operate.
5. Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
6. Save the parameter of different filling weight for different materials.To save 20 sets at most.
7. Replacing the auger parts,it is suitable for material from super thin powder to granule.

Specification :

Model	TP-PF-ZA11
Control system	PLC & touch screen
Hopper volume	25L split hopper
Filling weight	1-500g
Weight dosing	By load cell
Filling accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1%
Filling speed	30-100 times per min
Power supply	3P AC208-415V 50/60Hz
Total Power	0.93kw
Total weight	160kg
Overall Dimensions	Overall Dimensions

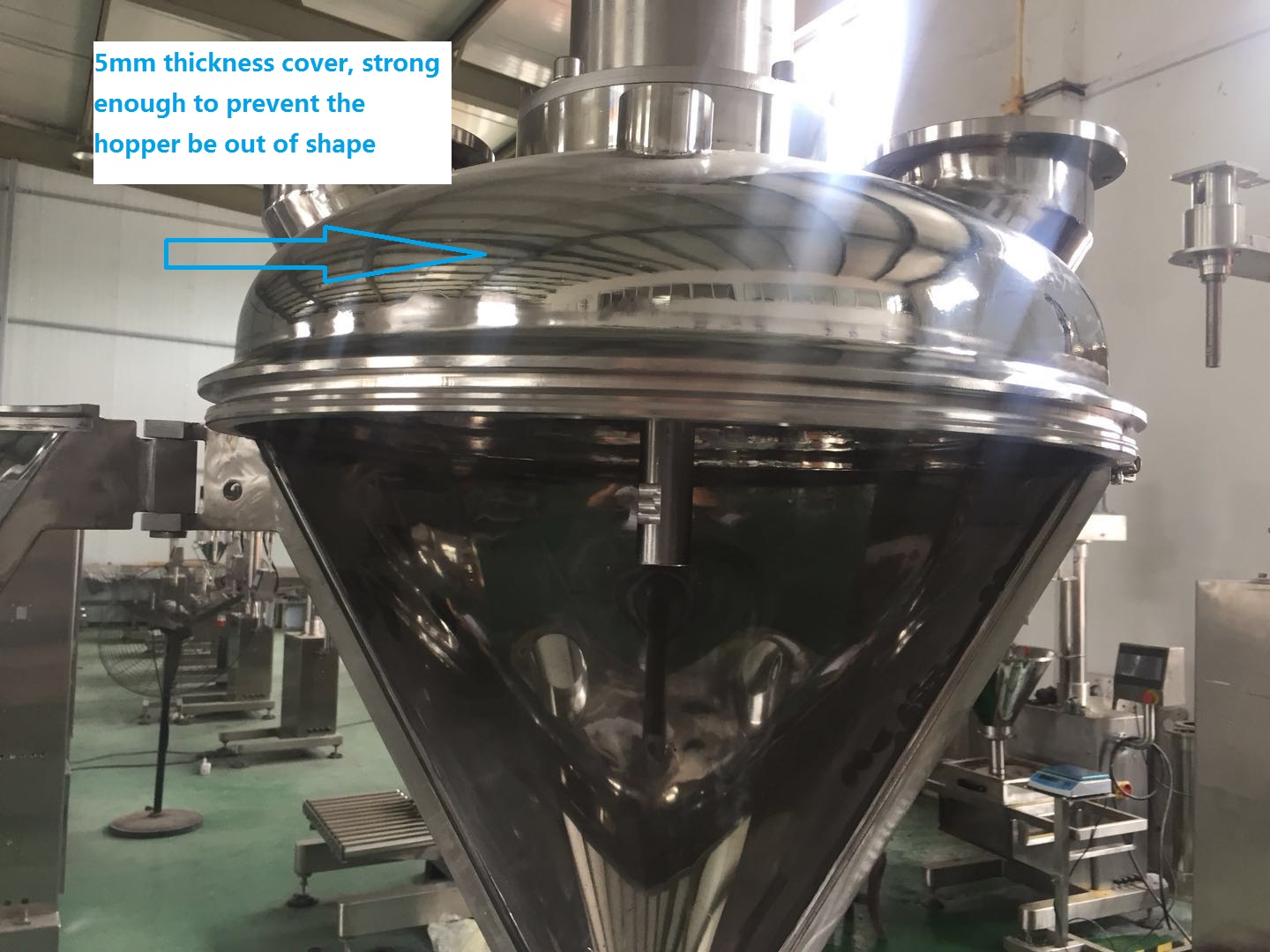

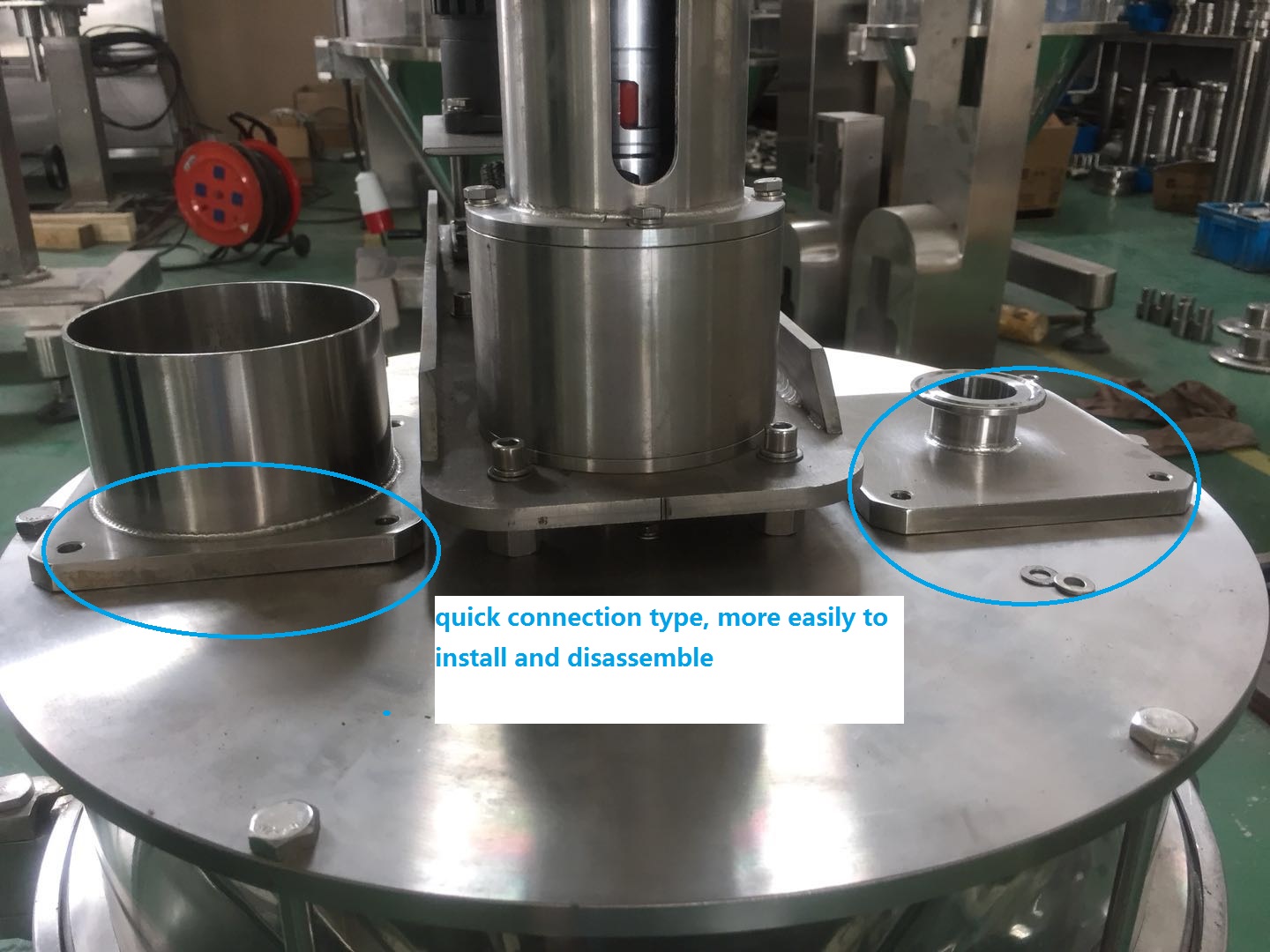

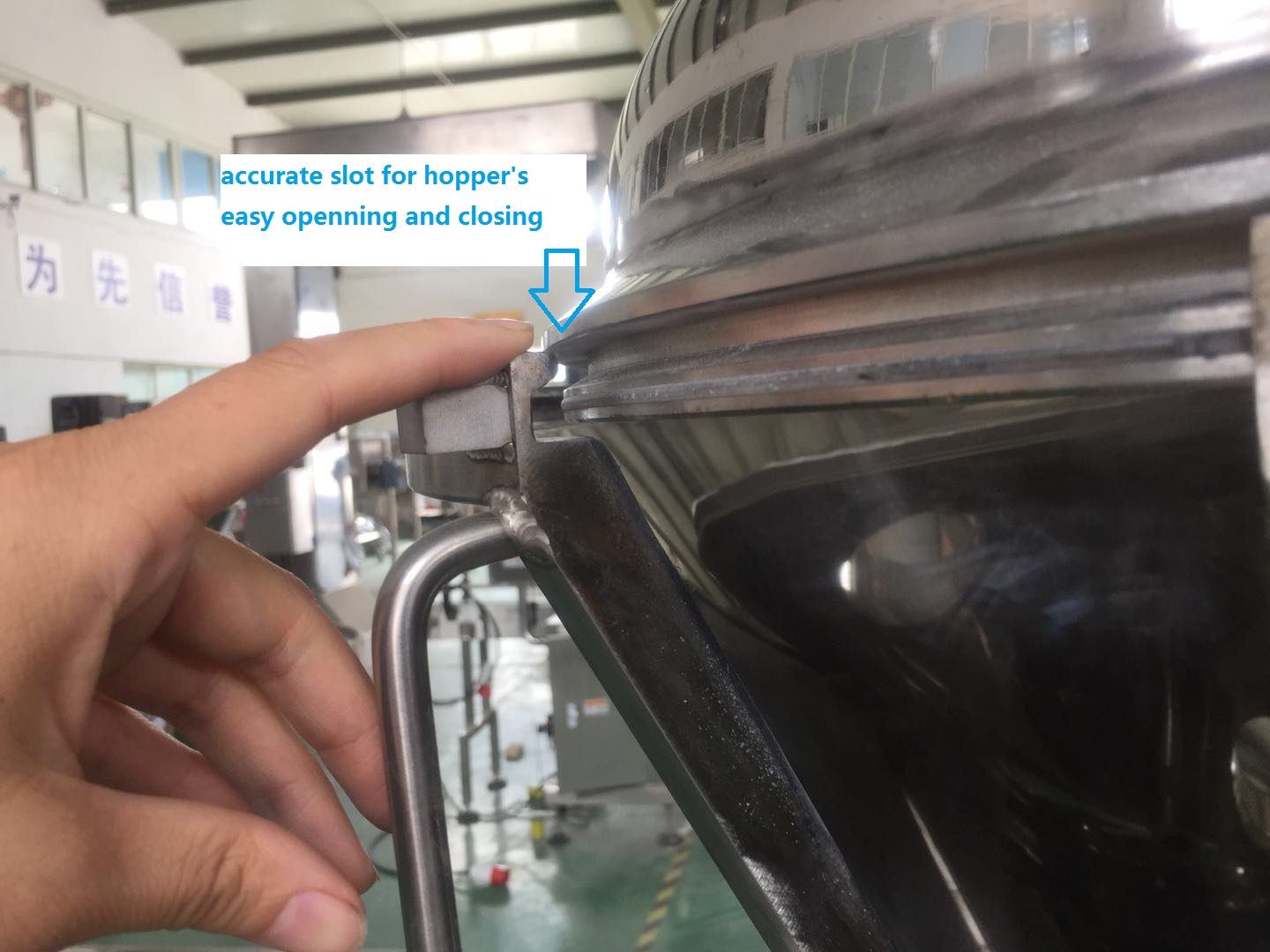

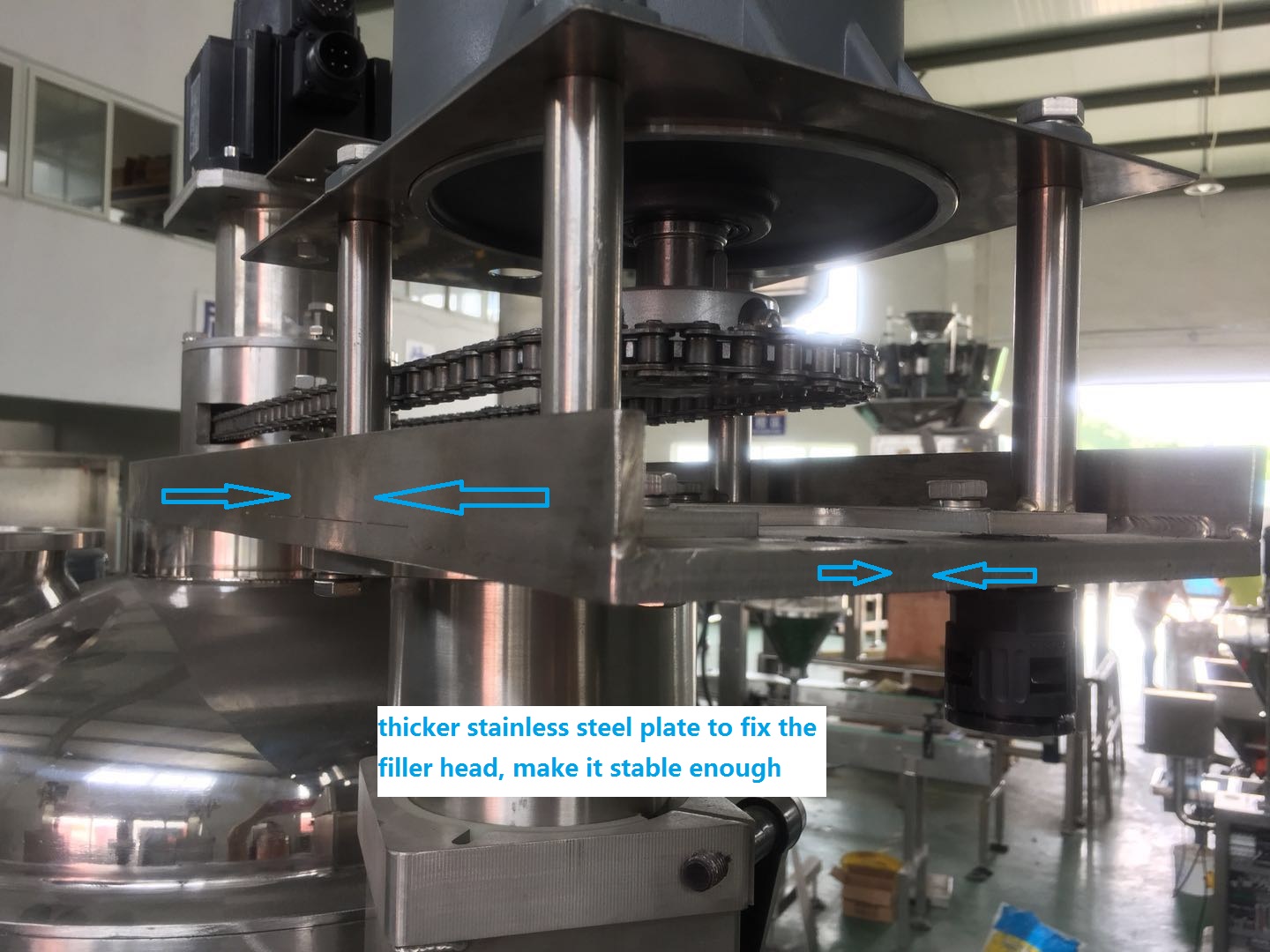

Detailed photos:

Food Industry Milk Dry Powder Filling Machine Stainless Steel Material

Production line:

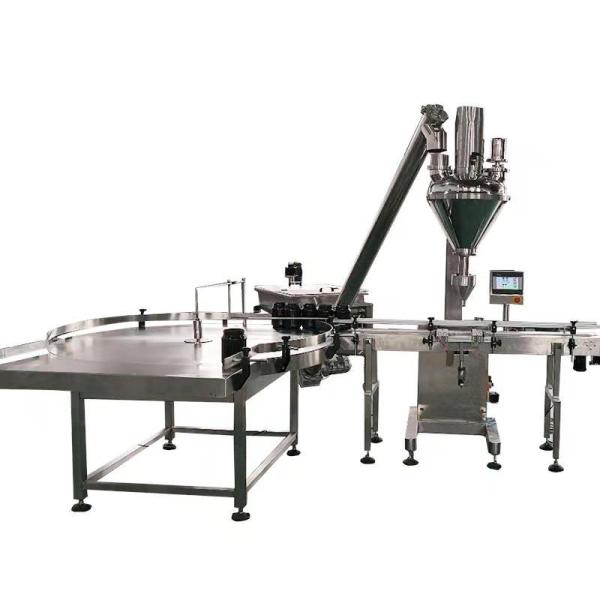

Food Industry Milk Dry Powder Filling Machine Stainless Steel Material
