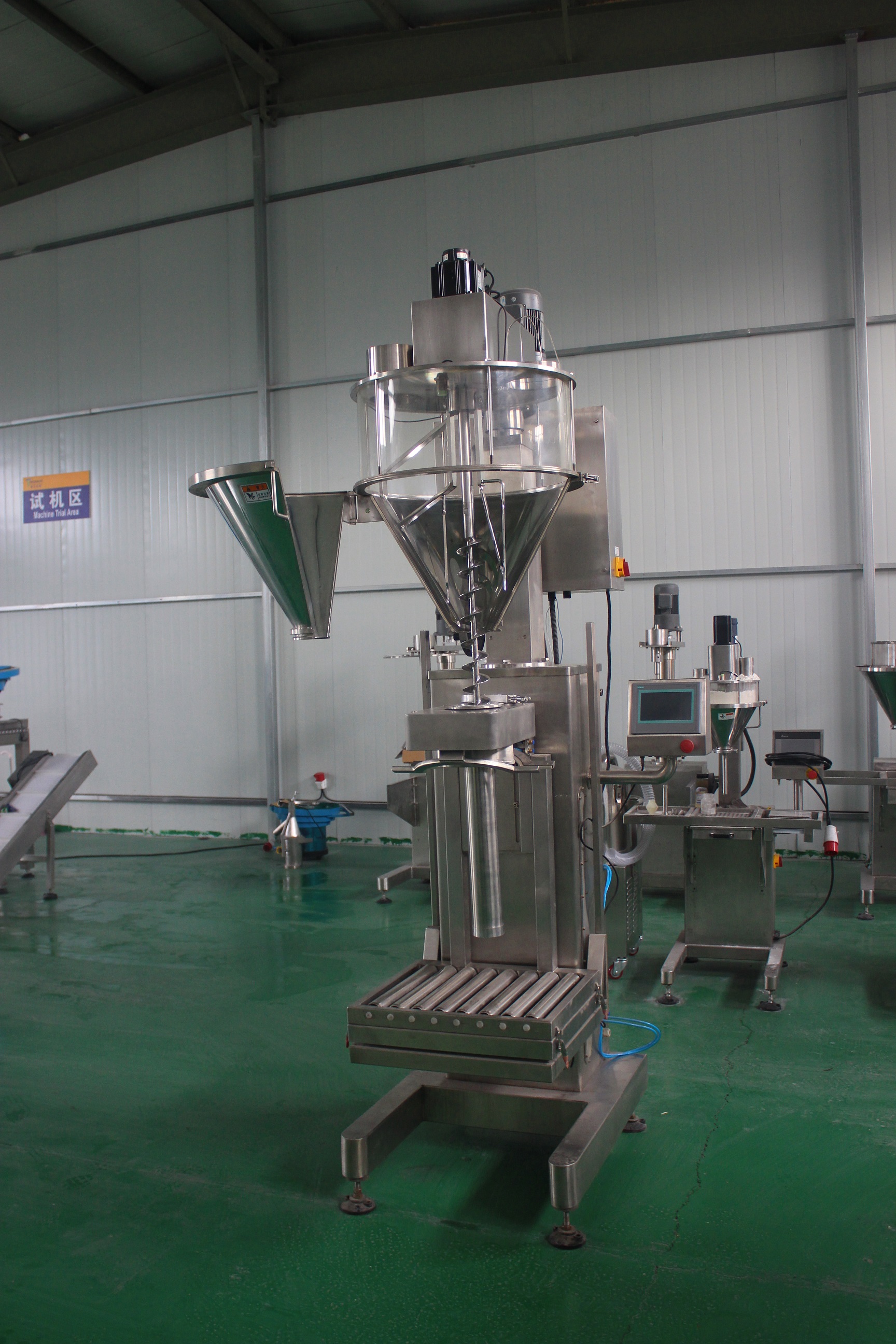

Pet Food Big Bag Packing Machine CE Certificate
General Description :
This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement. Based on the feedback sign given by below weight sensor, this machine do measuring, two-filling , and up-down work ,etc. It is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.
Specification :
| Model | TP-PF-B12 |
| Control system | PLC & touch screen |
| Hopper volume | 70L split hopper |
| Filling weight | 1kg-50kg |
| Dosing mode | With online weighing Fast and slow filing |
| Filling accuracy | 1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% |
| Filling speed | 2-25 times per min |
| Power supply | 3P AC208-415V 50/60Hz |
| Total Power | 3.2 kw |
| Total weight | 500kg |
| Overall Dimensions | 1130×950×2800mm |
Features :
Lathing auger screw to guarantee the precise filling accuracy
PLC control and touch screen display
Servo motor drives screw to guarantee stable performance
Quick disconnecting hopper could be washed easily without tools
Can be setting to semi-auto filling by pedal switch or auto filling
Full stainless steel 304 material
Weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes
due to materials’ density change.
Save 10 sets of formula inside the machine for later use
Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
Weight sensor is below the tray, to do fast filling and slow filling based on the pre-set weight, to guarantee the high packaging accuracy.
Process:put bag/can(container) on the machine→container raise→fast filling container declines→weight reaches the preset number→slow filling→weight reaches the goal number→take the container away manually

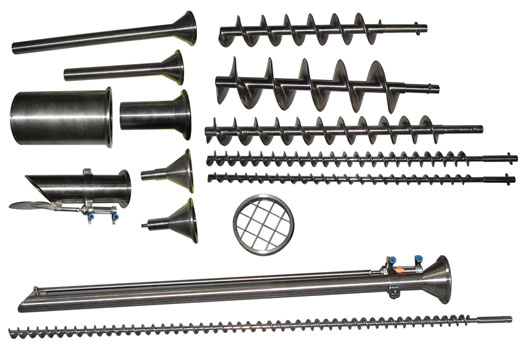

Metering auger: different metering range use different size auger
Configuration List :
| No. | Name | Pro. | Brand |
| 1 | PLC | Taiwan | DELTA |
| 2 | Touch Screen | Taiwan | DELTA |
| 3 | Servo motor | Taiwan | DELTA |
| 4 | Servo driver | Taiwan | DELTA |
| 5 | Switching powder supply | | Schneider |
| 6 | Emergency switch | | Schneider |
| 7 | Contactor | | Schneider |
| 8 | Relay | | omron |
| 9 | Proximity switch | Korea | Autonics |
| 10 | Level sensor | Korea | Autonics |
Detailed photos:
A: split type hopper (simple to open the hopper and change different size auger)

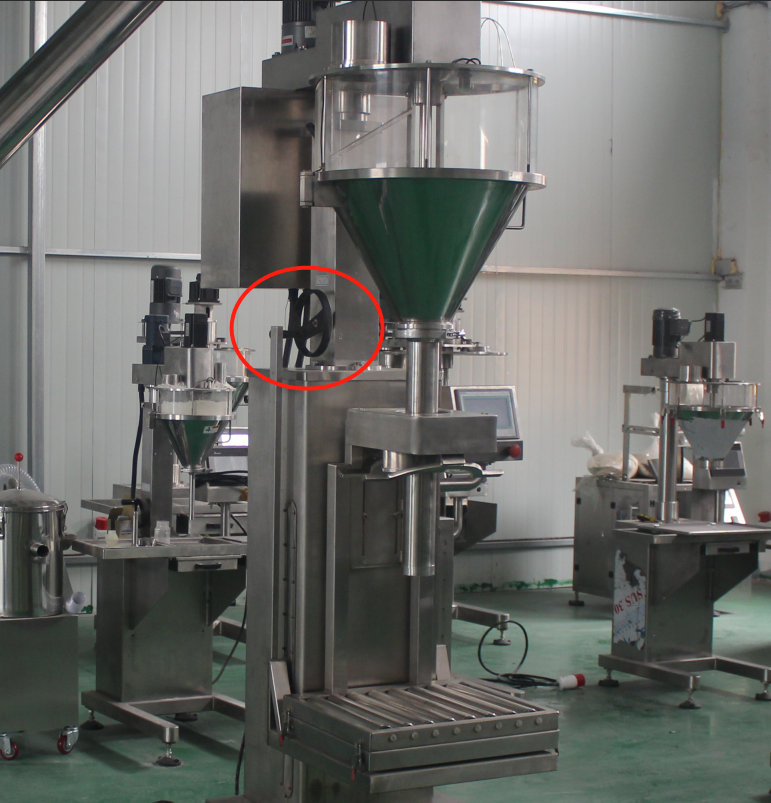

B: handwheel to adjust filling nozzle height (suitable for different height container)
D: Pneumatic bag-clamp device:
