3 Phase Spice Packing Machine , Auger Powder Filling Machine For Jar / Bottle

Name: 3 Phase Spice Packing Machine Auger Powder Filling Machine For Jar Bottle
Brand: TOPSPACK
Price: 1 USD

Brand Name : TOPSPACK

Model Number : TP-PF-A21 & TP-PF-A22

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1 set

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10 sets/week

Delivery Time : 20-30 work days

Packaging Details : inner package :plastic film; outer package: sea worthy plywood

Name : Automatic Powder Auger filler

Material : stainless steel 304 or 316

Capacity : 15-40 bottles/min

Aplication : powder and small granular

Function : measuring and filling

Power : 380V / 220V, 3phase

Contact Now

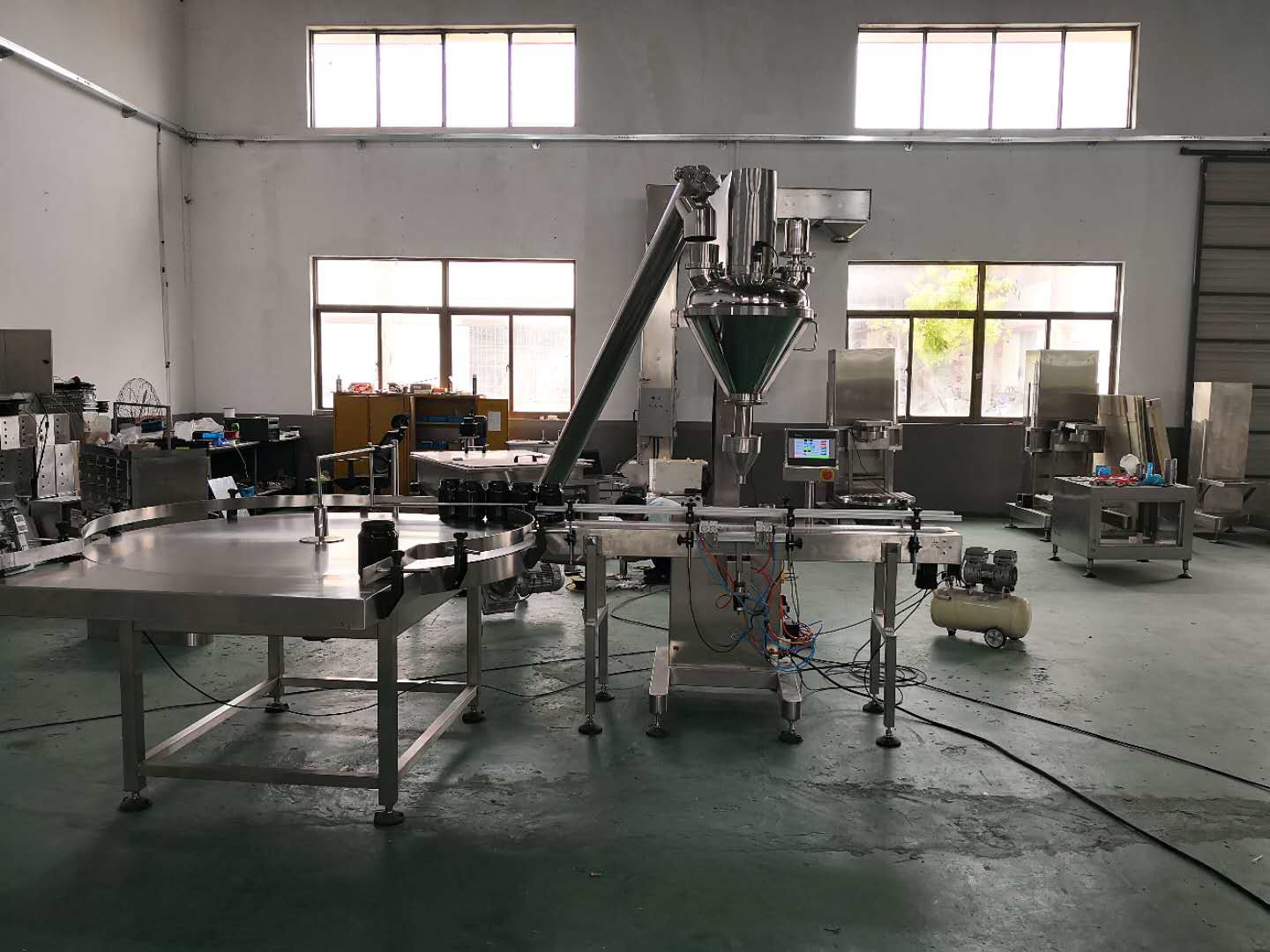

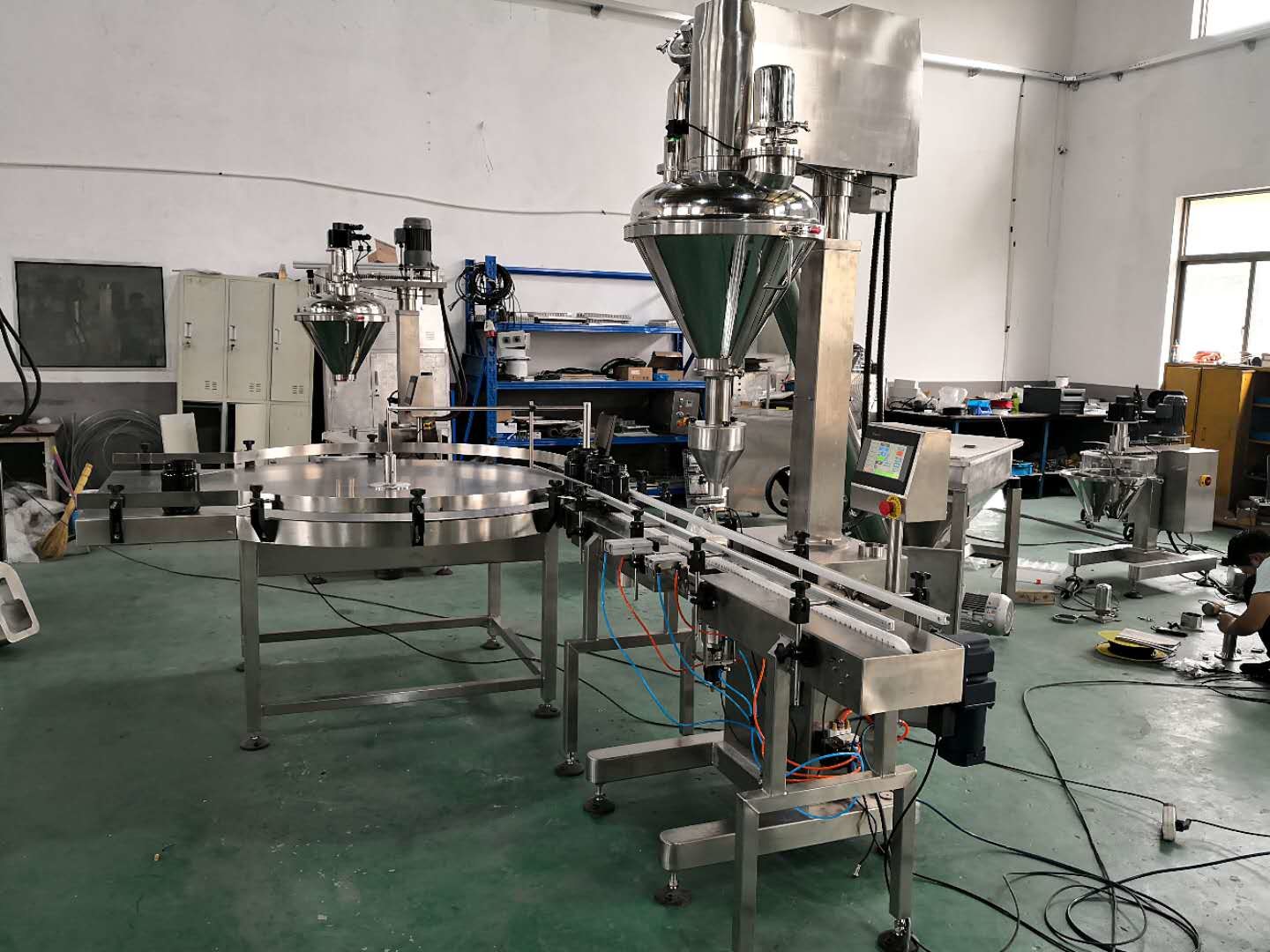

2018 New Design Automatic Spice Powder Auger Filling Machine for Jar and Bottle

Descriptive abstract

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular.

Main features

Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
Servo motor drive screw.
PLC, Touch screen and weighing module control.
To save all product’s parameter formula for later use, save 10 sets at most.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Include handwheel of adjustable height.

Main Technical Data

Model	TP-PF-A21	TP-PF-A22
Dosing mode	Directly dosing by auger	Directly dosing by auger
Filling weight	1 - 500g	10 – 5000g
Filling Accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	15 – 40 bottles per min	15 – 40 bottles per min
Power Supply	3P AC208-415V 50/60Hz	3P AC208 - 415V 50/60Hz
Air Supply	6 kg/cm2 0.05m3/min	6 kg/cm2 0.05m3/min
Total power	1.2Kw	1.6Kw
Total Weight	160kg	300kg
Overall Dimensions	1500×760×1850mm	2000×970×2030mm
Hopper Volume	25L	50L
